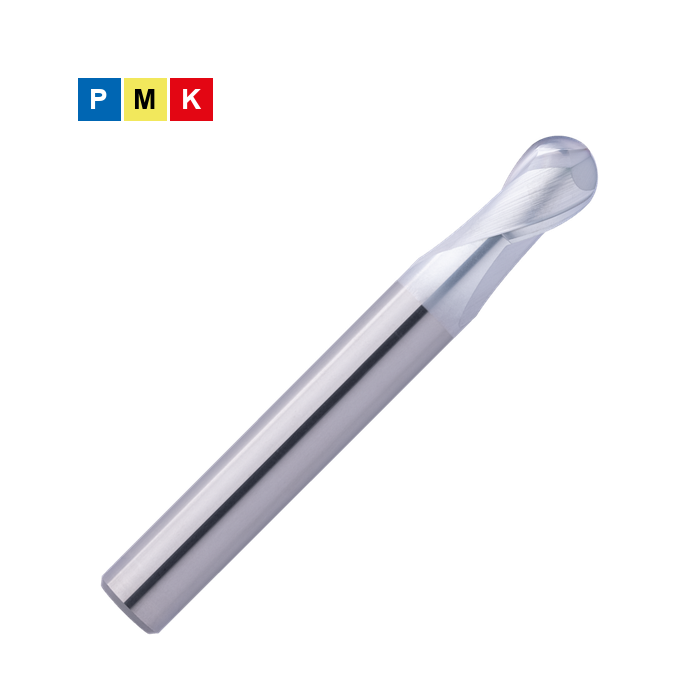

H&V EXPK1-M08-0123 ROWMAKER Solid Carbide Ball-Nose End Mill 2FL 1xD long AFPX

Sign in to view price and availability

Hofmann & Vratny EXPK1 ROWMAKER ball-nose end mill.

Key features

  • Optimized cross cutting edge for minimal face wear
  • Innovative shape of the chip chamber for effective chip evacuation
  • Adapted wedge angle for homogeneous cutting force distribution
  • For use in HSC milling
  • For roughing and finishing
  • Long version for deeper cavities
  • Designed for machining with air-cooling
  • Radius tolerance r ≤ 2 mm: ± 0.003 mm
  • Radius tolerance r > 2 mm: ± 0.005 mm
  • Solid carbide
  • AFPX coating
  • 2FL cutting geometry
  • Shank form: HA
  • Manufacturer length designation: 1xD long (see variant dimensions and catalog for exact cutting length and reach)
  • Cutting diameter tolerance: f8

Recommended workpiece materials

PSteels

  • Unalloyed steels — tensile strength < 500 N/mm² — Primary application
  • Unalloyed steels — tensile strength < 1,100 N/mm² — Primary application
  • Low-alloy steels — tensile strength < 950 N/mm² — Primary application
  • Low-alloy steels — tensile strength < 1,300 N/mm² — Primary application
  • High-alloy steels — tensile strength < 1,100 N/mm² — Primary application
  • High-alloy steels — tensile strength < 1,400 N/mm² — Primary application

MStainless steels

  • Ferritic / martensitic stainless steels — tensile strength < 850 N/mm² — Secondary application
  • Austenitic stainless steels — tensile strength < 650 N/mm² — Secondary application
  • Austenitic stainless steels — tensile strength < 750 N/mm² — Secondary application

KCast iron

  • Grey cast iron — tensile strength < 1,000 N/mm² — Primary application
  • Nodular cast iron — tensile strength < 850 N/mm² — Primary application
  • Malleable cast iron — tensile strength < 800 N/mm² — Primary application

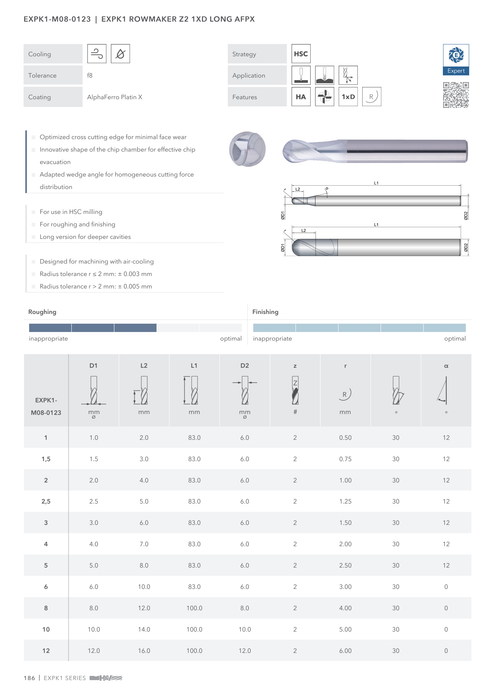

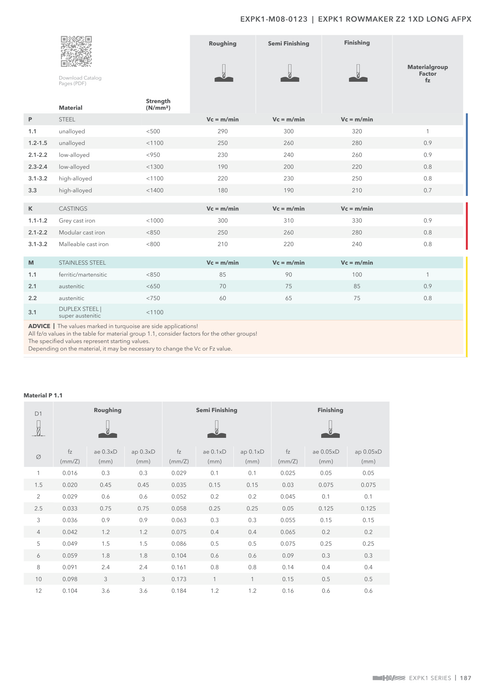

Material groups and primary/secondary applications follow the H&V catalog. Select cutting conditions for the specific material and operation; not every operation is supported for every material. Refer to the catalog pages in the gallery for dimensions and cutting data.
