H&V EXPK1-M06-0224 FORMMAKER Solid Carbide Corner-Radius End Mill 5FL 2xD AFPX

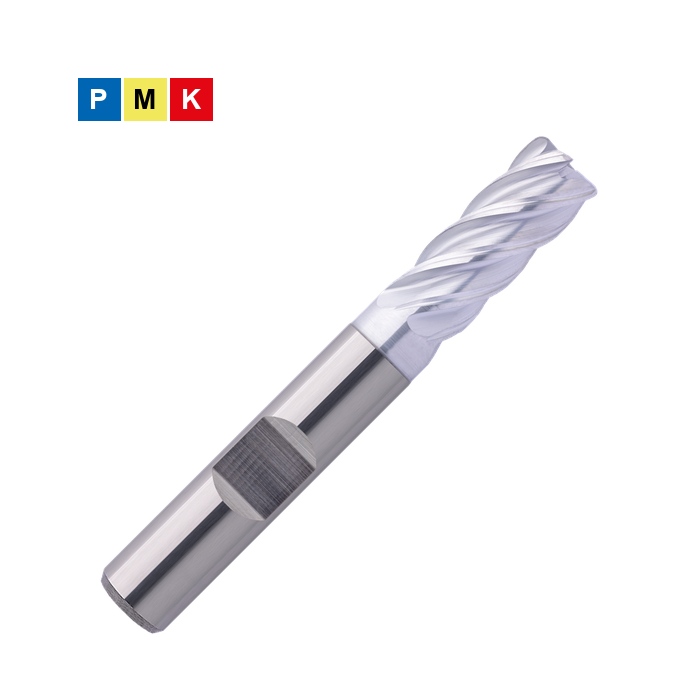

Hofmann & Vratny EXPK1 FORMMAKER corner-radius end mill.
Key features
- Five cutting edges for an optimized metal removal rate and extended tool life
- Defined geometry of the cutting edges for stabilization with high cutting depths
- For multipass milling of 3D contours
- Radius tolerance r ≤ 1.5 mm: ± 0.003 mm
- Radius tolerance r > 1.5 mm: ± 0.005 mm
- Solid carbide
- AFPX coating
- 5FL cutting geometry
- Shank form: HB
- Manufacturer length designation: 2xD (see variant dimensions and catalog for exact cutting length and reach)
- Cutting diameter tolerance: e8
Recommended workpiece materials
PSteels
- Unalloyed steels — tensile strength < 500 N/mm² — Primary application
- Unalloyed steels — tensile strength < 1,100 N/mm² — Primary application
- Low-alloy steels — tensile strength < 950 N/mm² — Primary application
- Low-alloy steels — tensile strength < 1,300 N/mm² — Primary application
- High-alloy steels — tensile strength < 1,100 N/mm² — Primary application
- High-alloy steels — tensile strength < 1,400 N/mm² — Primary application
MStainless steels
- Ferritic / martensitic stainless steels — tensile strength < 850 N/mm² — Secondary application
- Austenitic stainless steels — tensile strength < 650 N/mm² — Secondary application
- Austenitic stainless steels — tensile strength < 750 N/mm² — Secondary application
KCast iron
- Grey cast iron — tensile strength < 1,000 N/mm² — Primary application
- Nodular cast iron — tensile strength < 850 N/mm² — Primary application
- Malleable cast iron — tensile strength < 800 N/mm² — Primary application

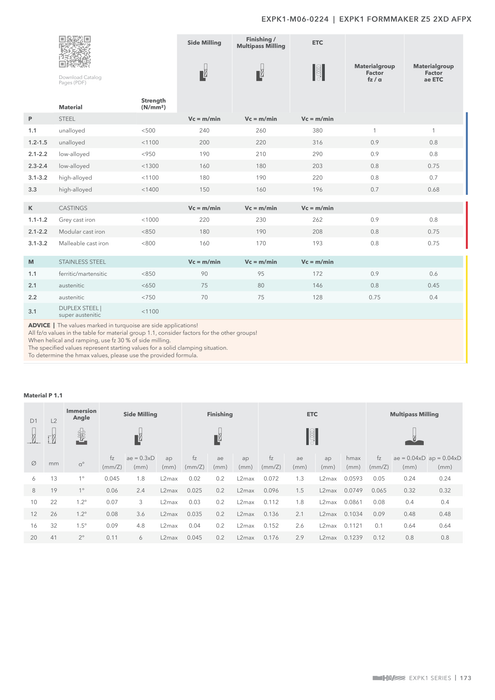

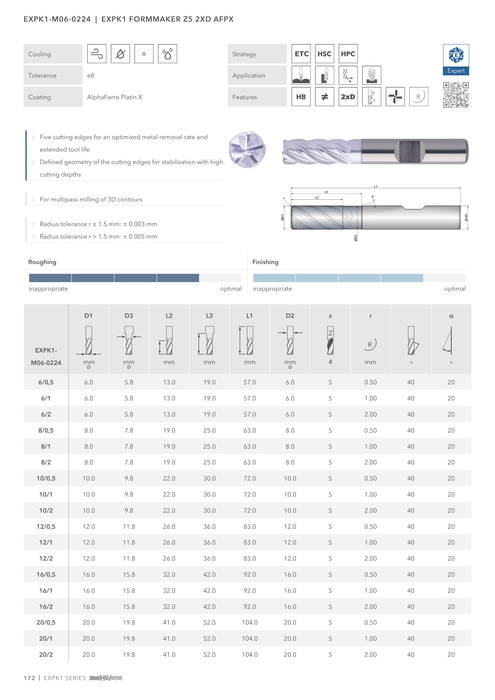

Material groups and primary/secondary applications follow the H&V catalog. Select cutting conditions for the specific material and operation; not every operation is supported for every material. Refer to the catalog pages in the gallery for dimensions and cutting data.
