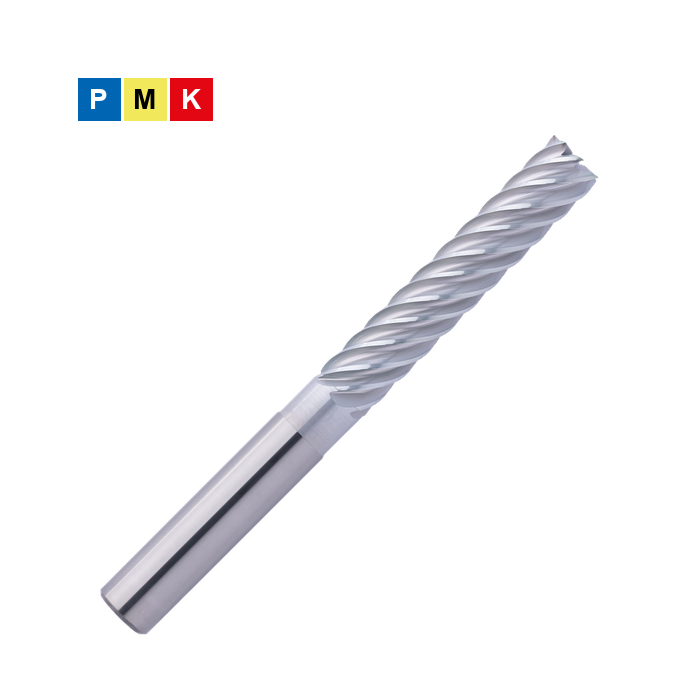

EXPK1-M04-0053 product image

H&V EXPK1-M04-0053 MIRRORMAKER Solid Carbide Finishing End Mill 7FL 5xD AFPX

Sign in to view price and availability

Hofmann & Vratny EXPK1 MIRRORMAKER finishing end mill.

Key features

  • 7 finely finished and homogenized cutting edges
  • Special groove profile for the removal of long chips
  • Variable helical pitch and unequal tooth pitch for maximum smoothness
  • For excellent surfaces and maximum dimensional accuracy
  • 7 cutting edges for highest feed rates
  • Solid carbide
  • AFPX coating
  • 7FL cutting geometry
  • Shank form: HA
  • Manufacturer length designation: 5xD (see variant dimensions and catalog for exact cutting length and reach)

Recommended workpiece materials

PSteels

  • Unalloyed steels — tensile strength < 500 N/mm² — Primary application
  • Unalloyed steels — tensile strength < 1,100 N/mm² — Primary application
  • Low-alloy steels — tensile strength < 950 N/mm² — Primary application
  • Low-alloy steels — tensile strength < 1,300 N/mm² — Primary application
  • High-alloy steels — tensile strength < 1,100 N/mm² — Primary application
  • High-alloy steels — tensile strength < 1,400 N/mm² — Primary application

MStainless steels

  • Ferritic / martensitic stainless steels — tensile strength < 850 N/mm² — Secondary application
  • Austenitic stainless steels — tensile strength < 650 N/mm² — Secondary application
  • Austenitic stainless steels — tensile strength < 750 N/mm² — Secondary application

KCast iron

  • Grey cast iron — tensile strength < 1,000 N/mm² — Primary application
  • Nodular cast iron — tensile strength < 850 N/mm² — Primary application
  • Malleable cast iron — tensile strength < 800 N/mm² — Primary application

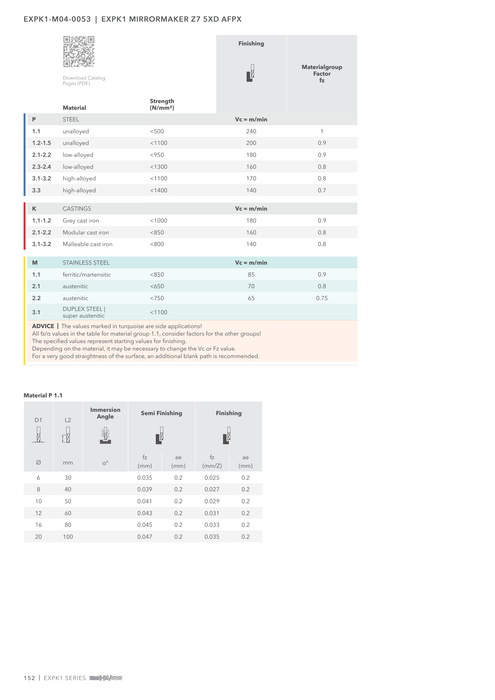

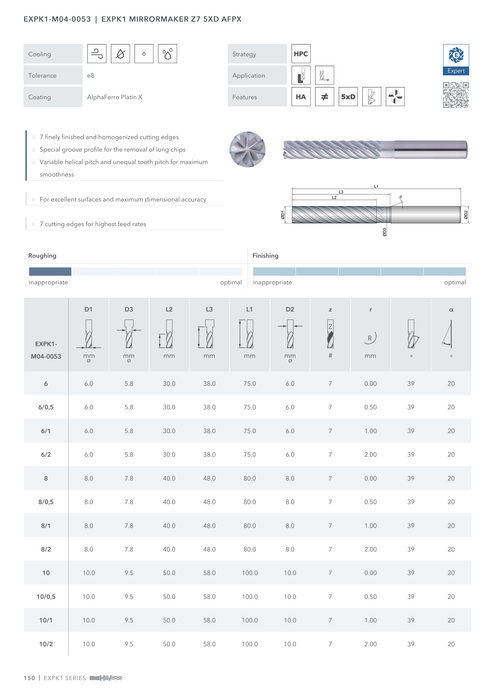

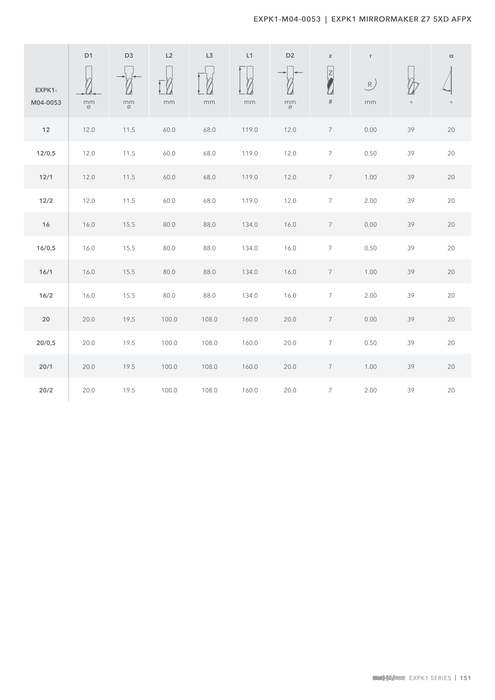

Material groups and primary/secondary applications follow the H&V catalog. Select cutting conditions for the specific material and operation; not every operation is supported for every material. Refer to the catalog pages in the gallery for dimensions and cutting data.
