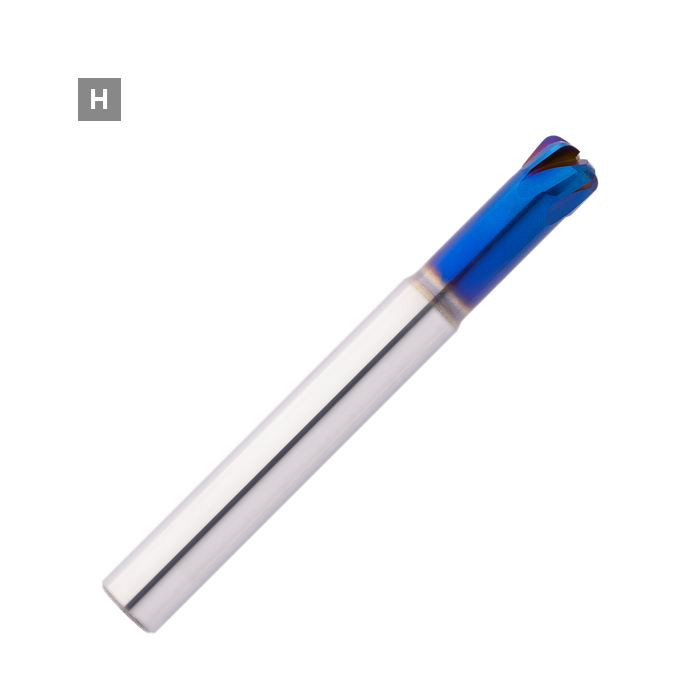

K207013 product image

H&V K207013 BLADEMAKER Solid Carbide High-Feed End Mill 2–5FL 0.5xD short ADN

Sign in to view price and availability

Hofmann & Vratny BLADEMAKER high-feed end mill.

Key features

  • Ultrafine carbide grade specially developed for machining hardened steels
  • Geometry with tangential transitions for HSC milling
  • Defined cutting edge preparation for homogeneous wear
  • For roughing and finishing under HSC conditions
  • Check programming radius and ap max. according to the variant table
  • Solid carbide
  • AlphaDura Navy (ADN) coating
  • 2–5FL cutting geometry
  • Shank form: HA
  • Manufacturer length designation: 0.5xD short (see variant dimensions and catalog for exact cutting length and reach)
  • Cutting diameter tolerance: h9

Recommended workpiece materials

HHardened steels

  • Hardened steels — hardness 46-55 HRC — Primary application
  • Hardened steels — hardness 56-60 HRC — Primary application
  • Hardened steels — hardness 60-65 HRC — Primary application
  • Hardened steels — hardness 66-70 HRC — Primary application

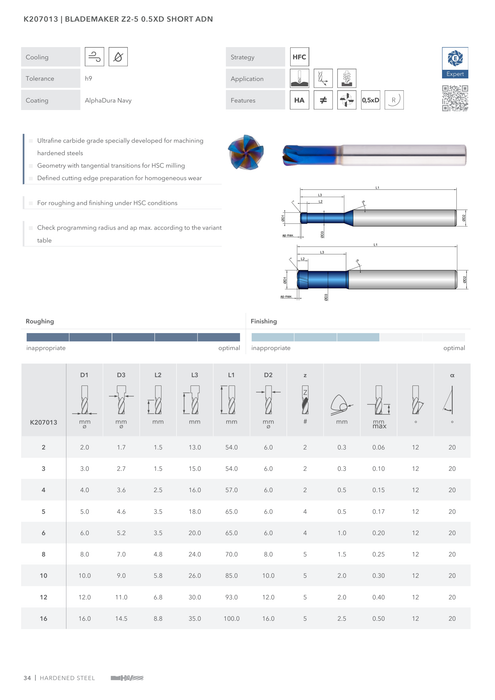

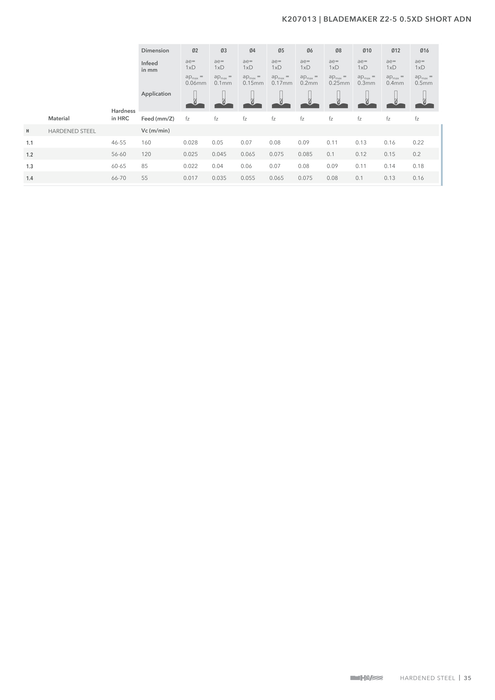

Material groups and primary/secondary applications follow the H&V catalog. Select cutting conditions for the specific material and operation; not every operation is supported for every material. Refer to the catalog pages in the gallery for dimensions and cutting data.
