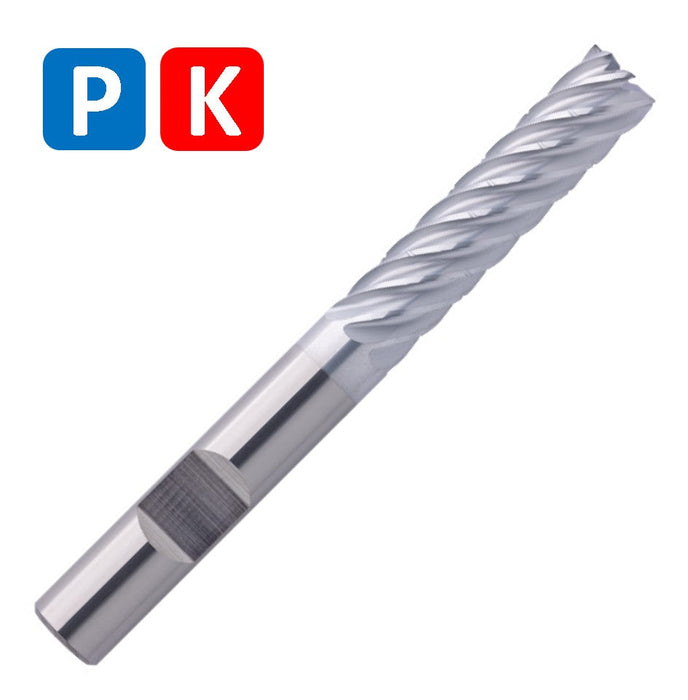

Solid Carbide End Mill 10mm 10R0.2x40-x90xD10

Solid Carbide End Mill 10mm 10R0.2x40-x90xD10

$131.10 - $131.10
$131.10
$131.10 - $131.10
$131.10

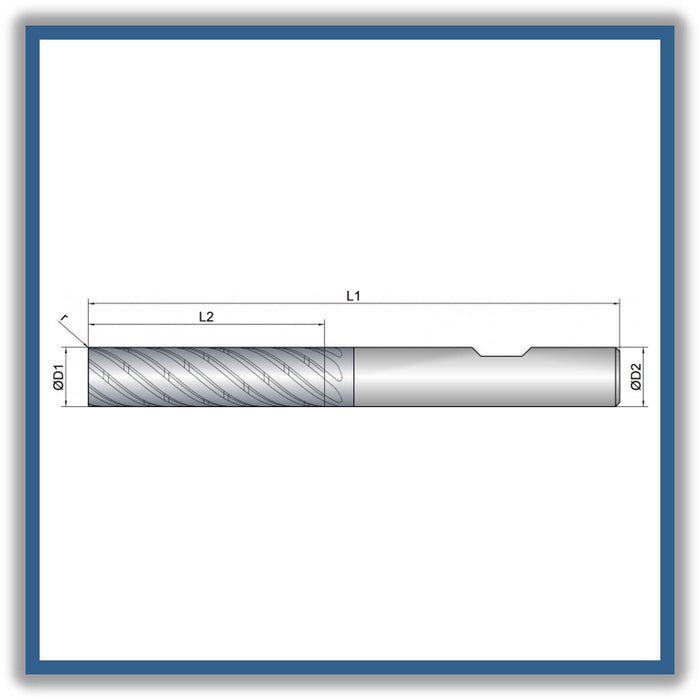

D1 (Cutting diameter): 10mm
L2 (Length of cut): 40mm
L1 (Total length): 90mm
D2 (Shank diameter): 10
Z (Number of cutting edges): 7
R Corner radius: 0.2
Helical pitch: 40
  • Variable helical pitch with unequal tooth pitch for smooth running and a soft cut
  • Adapted chip chambers for trochoidal milling
  • Optimized design of the chip breakers for maximum tool life
  • 7 cutting edges for best performance with a unique tool life
  • Ideal chip evacuation at the highest feed rates
  • For roughing and finishing under ETC conditions

 * MADE IN GERMANY *



Cooling: Air cooled, dry, water min, water max

Tolerance: e8

Coating: AlphaFerro Platin X

Strategy: Extended Trochoidal Cutting

Applications: Trimming, X

Features: Unequal tooth pitch, Chip breaking, 4XD, Dynamic helical pitch, Non-Center cutting, Corner radius

item code: 322009
