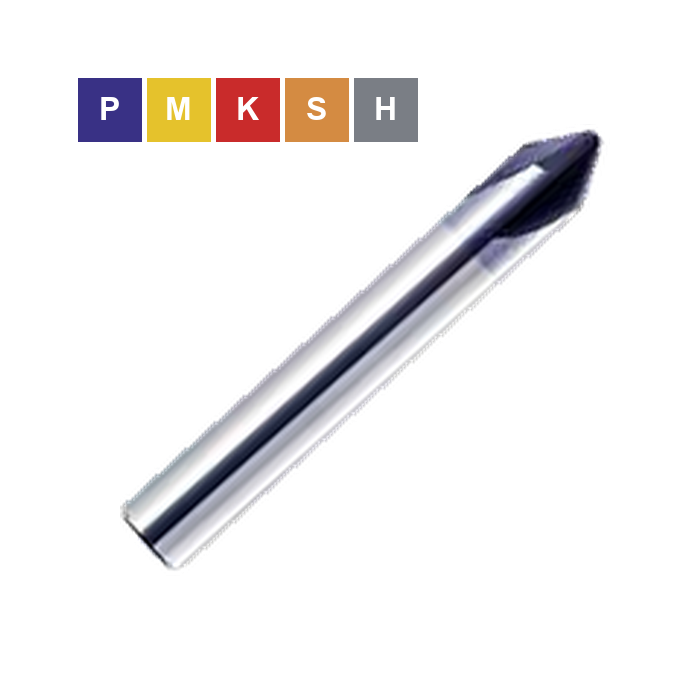

HEPYC 3183 product photo

3183 Solid Carbide Chamfer Mill

Sign in to view price and availability

3183 Solid Carbide Chamfer Mill

60° chamfer mill from HEPYC series 3183. Tool material: Carbide (HM-MD).

Key Features:

  • Tool material: Carbide (HM-MD)
  • Number of flutes Z: 4Z
  • Geometry / design: 60°
  • Helix angle: 0°
  • Coating / treatment: TIALN
  • Cutting edge: 30°

Recommended Materials:

P Steels

  • Steels <800 N/mm² – Optimal suitability
  • Steels <1,000 N/mm² – Optimal suitability
  • Steels <1,200 N/mm² – Optimal suitability
  • Steels <1,400 N/mm² – Optimal suitability

M Stainless steels

  • Stainless steels <950 N/mm² – Optimal suitability
  • Stainless steels <1,200 N/mm² – Optimal suitability

K Cast iron

  • Cast iron <500 N/mm² – Optimal suitability
  • Cast iron <800 N/mm² – Optimal suitability
  • Cast iron <1,400 N/mm² – Alternative suitability

N Non-ferrous materials

  • Copper and copper alloys (Cu) – Alternative suitability

S Titanium and heat-resistant alloys

  • Nickel alloys (Ni) – Optimal suitability
  • Titanium (Ti) – Optimal suitability

H Hard materials

  • 50 HRC – Optimal suitability
  • 55 HRC – Alternative suitability
