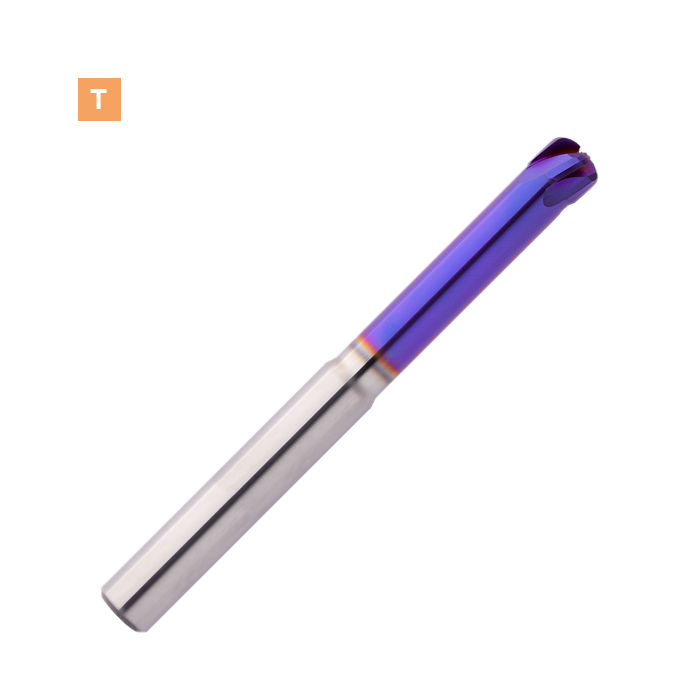

H&V K207038 BLADEMAKER Solid Carbide High-Feed End Mill 2–5FL 0.5xD long AFVX

Sign in to view price and availability

Hofmann & Vratny BLADEMAKER high-feed end mill.

Key features

  • Geometry with tangential transitions for HSC milling
  • Highly polished chip space for safe chip evacuation
  • Long version for deeper cavities
  • For roughing and finishing under HSC conditions
  • Check programming radius and ap max. according to the variant table
  • Solid carbide
  • AlphaFusion Violet X (AFVX) coating
  • 2–5FL cutting geometry
  • Shank form: HA
  • Manufacturer length designation: 0.5xD long (see variant dimensions and catalog for exact cutting length and reach)
  • Cutting diameter tolerance: h9

Recommended workpiece materials

TTitanium

  • Pure titanium and titanium alloys — tensile strength < 1,000 N/mm² — Primary application
  • Pure titanium and titanium alloys — tensile strength < 1,400 N/mm² — Primary application

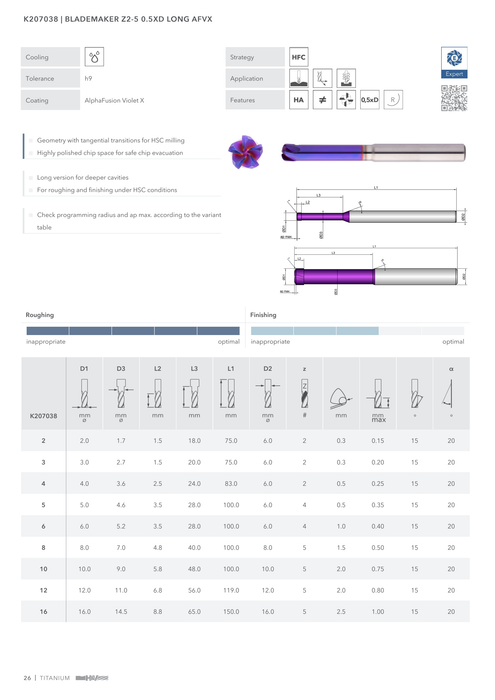

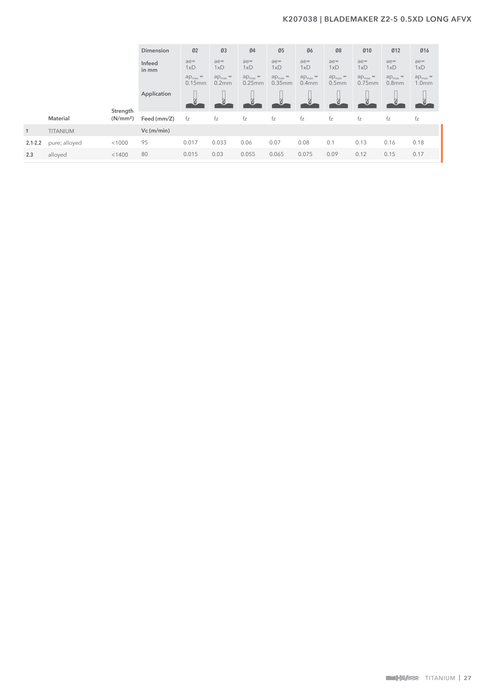

Material groups and primary/secondary applications follow the H&V catalog. Select cutting conditions for the specific material and operation; not every operation is supported for every material. Refer to the catalog pages in the gallery for dimensions and cutting data.
