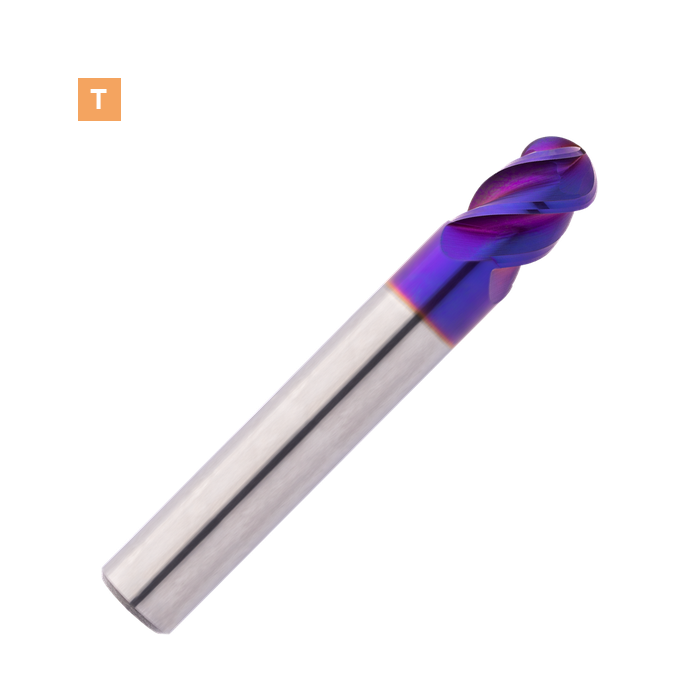

H&V K203383 ROWMAKER Solid Carbide Ball-Nose End Mill 4FL 1xD short AFVX

Sign in to view price and availability

Hofmann & Vratny ROWMAKER ball-nose end mill.

Key features

  • Highly polished chip space for safe chip evacuation
  • For roughing and finishing
  • 4 cutting edges to the center
  • Radius tolerance r ≤ 2 mm: ± 0.003 mm
  • Radius tolerance r > 2 mm: ± 0.005 mm
  • Solid carbide
  • AlphaFusion Violet X (AFVX) coating
  • 4FL cutting geometry
  • Shank form: HA
  • Manufacturer length designation: 1xD short (see variant dimensions and catalog for exact cutting length and reach)
  • Cutting diameter tolerance: f8

Recommended workpiece materials

TTitanium

  • Pure titanium and titanium alloys — tensile strength < 1,000 N/mm² — Primary application
  • Pure titanium and titanium alloys — tensile strength < 1,400 N/mm² — Primary application

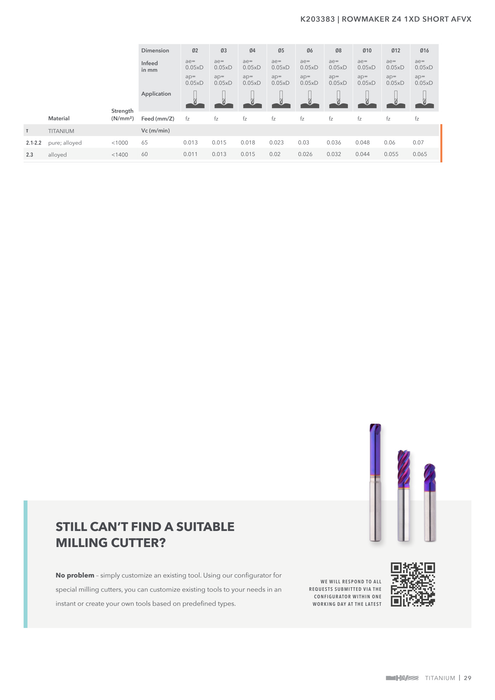

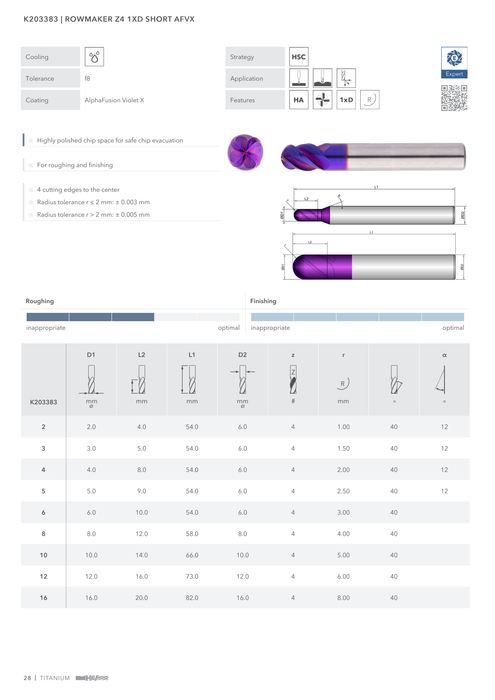

Material groups and primary/secondary applications follow the H&V catalog. Select cutting conditions for the specific material and operation; not every operation is supported for every material. Refer to the catalog pages in the gallery for dimensions and cutting data.
