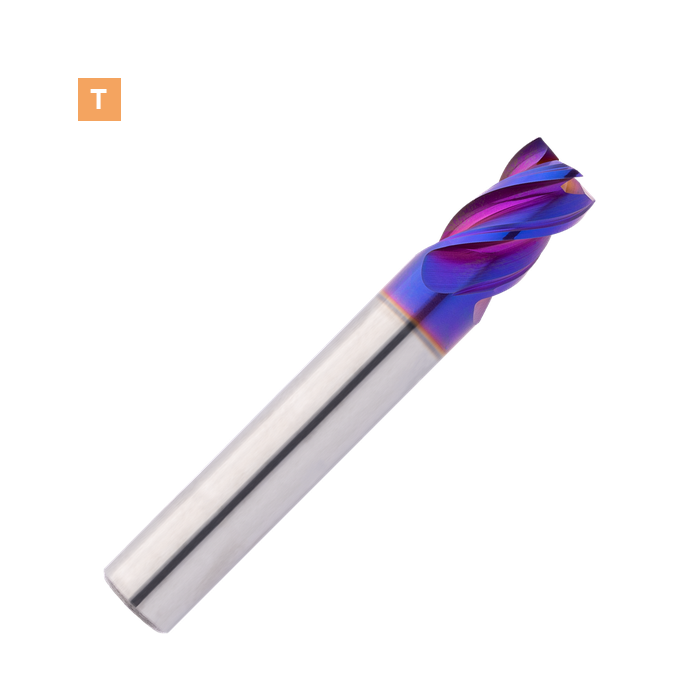

K201687 product image

H&V K201687 PERFORMMAKER Solid Carbide Square-End End Mill 4FL 1.5xD AFVX

Sign in to view price and availability

Hofmann & Vratny PERFORMMAKER square-end end mill.

Key features

  • Unequal tooth pitch combined with variable helical pitch for smooth running
  • Highly polished chip space for safe chip evacuation
  • Reinforced face for process reliable, helical diving
  • For roughing and finishing, up to 1xD full slot
  • Solid carbide
  • AlphaFusion Violet X (AFVX) coating
  • 4FL cutting geometry
  • Shank form: HA
  • Manufacturer length designation: 1.5xD (see variant dimensions and catalog for exact cutting length and reach)
  • Cutting diameter tolerance: e8

Recommended workpiece materials

TTitanium

  • Pure titanium and titanium alloys — tensile strength < 1,000 N/mm² — Primary application
  • Pure titanium and titanium alloys — tensile strength < 1,400 N/mm² — Primary application

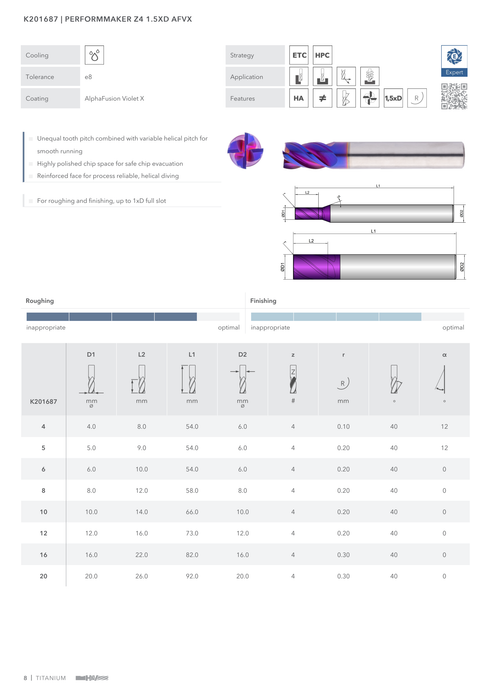

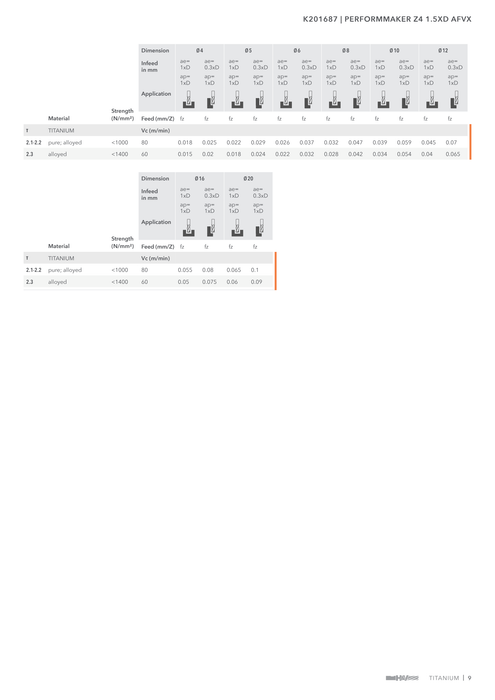

Material groups and primary/secondary applications follow the H&V catalog. Select cutting conditions for the specific material and operation; not every operation is supported for every material. Refer to the catalog pages in the gallery for dimensions and cutting data.
