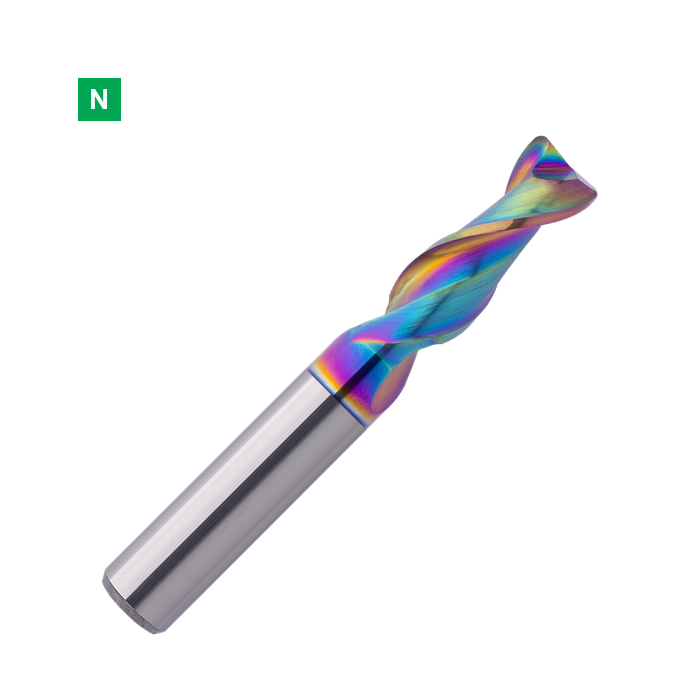

EXN1-M06-0103 product image

H&V EXN1-M06-0103 FORMMAKER Solid Carbide Corner-Radius End Mill 2FL 2xD ASR

Sign in to view price and availability

Hofmann & Vratny EXN1 FORMMAKER corner-radius end mill.

Key features

  • Defined clearance angle for ideal stabilization with high cutting depths
  • Special helix pitch for smooth running and a soft cut
  • Extra large chip chambers for an extreme chip volume
  • For multipass milling of 3D contours
  • Radius tolerance r ≤ 1.5 mm: ± 0.003 mm
  • Radius tolerance r > 1.5 mm: ± 0.005 mm
  • Solid carbide
  • AlphaSlide Rainbow (ASR) coating
  • 2FL cutting geometry
  • Shank form: HA
  • Manufacturer length designation: 2xD (see variant dimensions and catalog for exact cutting length and reach)
  • Cutting diameter tolerance: h6

Recommended workpiece materials

NNon-ferrous metals

  • Aluminium alloys — tensile strength < 500 N/mm² — Primary application
  • Aluminium alloys — tensile strength < 600 N/mm² — Primary application
  • Cast aluminium — tensile strength < 600 N/mm² — Primary application
  • Copper alloys — tensile strength < 650 N/mm² — Primary application
  • Magnesium alloys — tensile strength < 250 N/mm² — Primary application
  • Thermoplastics — tensile strength < 100 N/mm² — Primary application
  • Thermosetting plastics — tensile strength < 150 N/mm² — Primary application

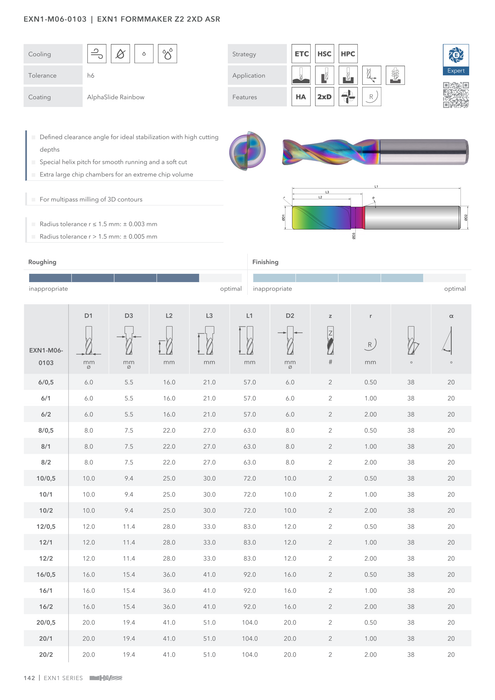

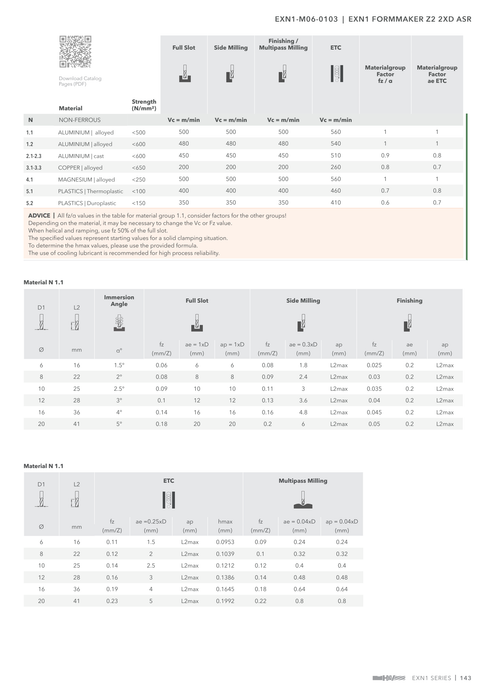

Material groups and primary/secondary applications follow the H&V catalog. Select cutting conditions for the specific material and operation; not every operation is supported for every material. Refer to the catalog pages in the gallery for dimensions and cutting data.
