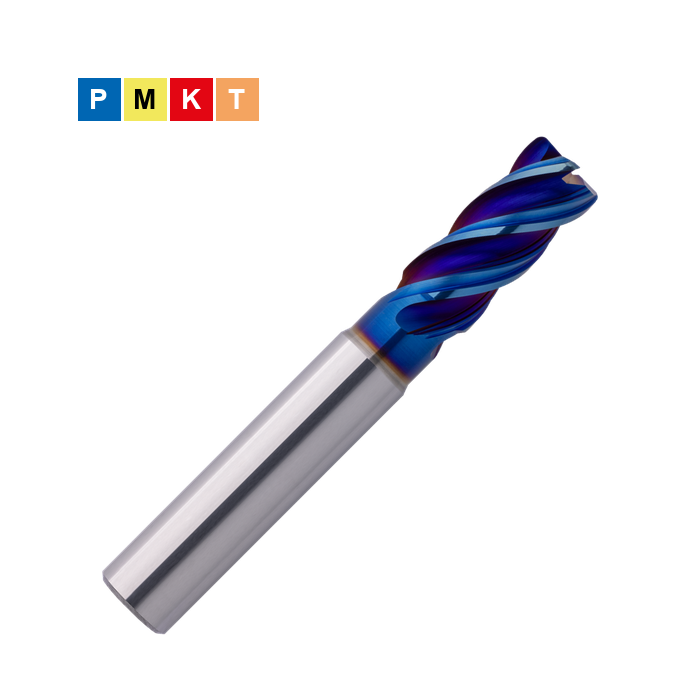

H&V EXM1-M06-0053 FORMMAKER Solid Carbide Corner-Radius End Mill 4FL 2xD ANNX

Sign in to view price and availability

Hofmann & Vratny FORMMAKER corner-radius end mill.

Key features

  • Optimized microgeometry with higher vibration resistance and increased cutting edge stability
  • Special unequal tooth pitch combined with variable helical pitch for smooth running
  • Geometry for contour milling, high radial depth of cut and full slot milling up to 1xD
  • Adapted face with two cutting edges to the center, for reliable helical immersion
  • Solid carbide
  • AlphaNox Navy X (ANNX) coating
  • 4FL cutting geometry
  • Shank form: HA
  • Manufacturer length designation: 2xD (see variant dimensions and catalog for exact cutting length and reach)

Recommended workpiece materials

PSteels

  • Unalloyed steels — tensile strength < 1,100 N/mm² — Secondary application
  • Low-alloy steels — tensile strength < 1,300 N/mm² — Secondary application
  • High-alloy steels — tensile strength < 1,400 N/mm² — Secondary application

MStainless steels

  • Ferritic / martensitic stainless steels — tensile strength < 850 N/mm² — Primary application
  • Austenitic stainless steels — tensile strength < 650 N/mm² — Primary application
  • Austenitic stainless steels — tensile strength < 750 N/mm² — Primary application
  • Duplex and super-austenitic stainless steels — tensile strength < 1,100 N/mm² — Primary application

KCast iron

  • Grey cast iron — tensile strength < 1,000 N/mm² — Secondary application

TTitanium

  • Pure titanium and titanium alloys — tensile strength < 1,000 N/mm² — Secondary application

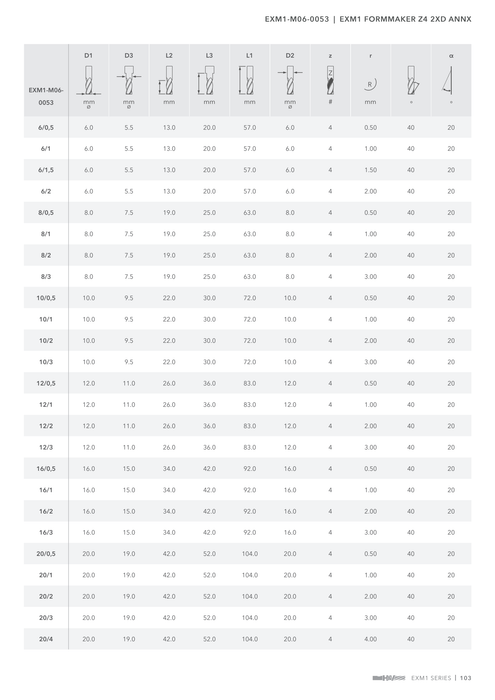

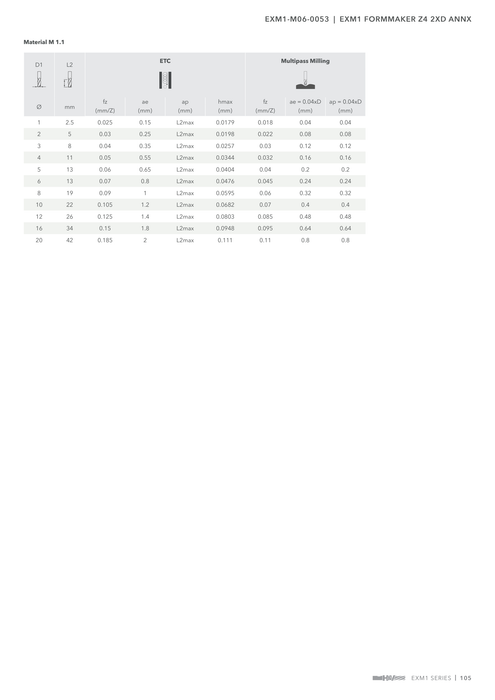

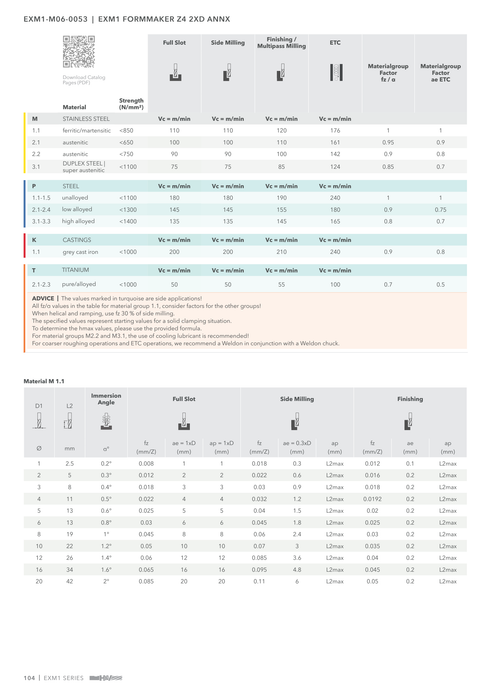

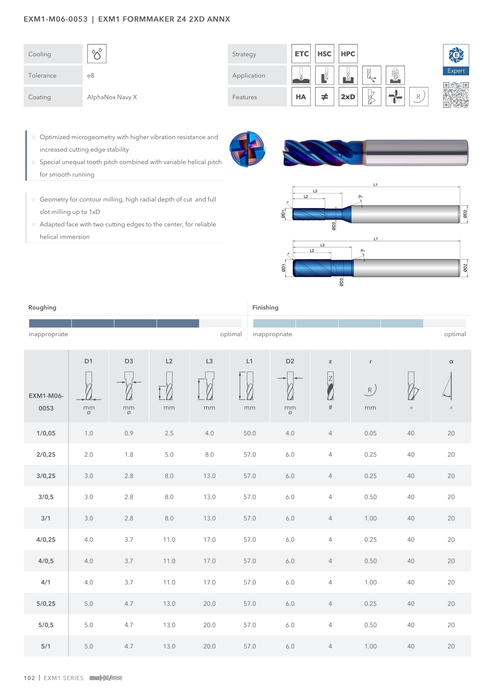

Material groups and primary/secondary applications follow the H&V catalog. Select cutting conditions for the specific material and operation; not every operation is supported for every material. Refer to the catalog pages in the gallery for dimensions and cutting data.
