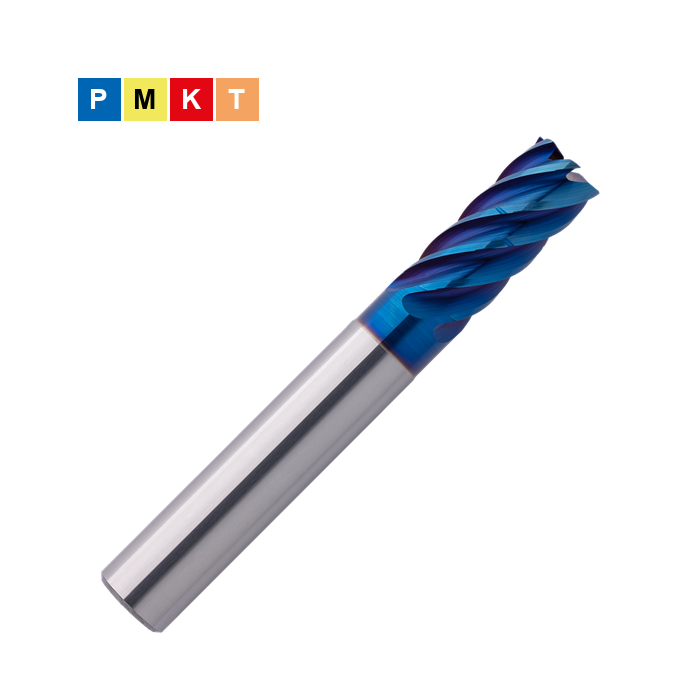

EXM1-M03-0103 product image

H&V EXM1-M03-0103 CHIPMAKER Solid Carbide Trochoidal End Mill 6FL 2xD ANNX

Sign in to view price and availability

Hofmann & Vratny CHIPMAKER trochoidal end mill.

Key features

  • 6 cutting edges for best performance and an excellent material removal rate
  • Optimized cutting edges and chip chambers to effectively prevent built-up edges and chip stuck
  • For roughing and finishing under ETC conditions
  • For process reliable, helical immersion
  • Ideal chip evacuation, even with high feed rates and big radial depth of cutting
  • Solid carbide
  • AlphaNox Navy X (ANNX) coating
  • 6FL cutting geometry
  • Shank form: HA
  • Manufacturer length designation: 2xD (see variant dimensions and catalog for exact cutting length and reach)

Recommended workpiece materials

PSteels

  • Unalloyed steels — tensile strength < 1,100 N/mm² — Secondary application
  • Low-alloy steels — tensile strength < 1,300 N/mm² — Secondary application
  • High-alloy steels — tensile strength < 1,400 N/mm² — Secondary application

MStainless steels

  • Ferritic / martensitic stainless steels — tensile strength < 850 N/mm² — Primary application
  • Austenitic stainless steels — tensile strength < 650 N/mm² — Primary application
  • Austenitic stainless steels — tensile strength < 750 N/mm² — Primary application
  • Duplex and super-austenitic stainless steels — tensile strength < 1,100 N/mm² — Primary application

KCast iron

  • Grey cast iron — tensile strength < 1,000 N/mm² — Secondary application

TTitanium

  • Pure titanium and titanium alloys — tensile strength < 1,000 N/mm² — Secondary application

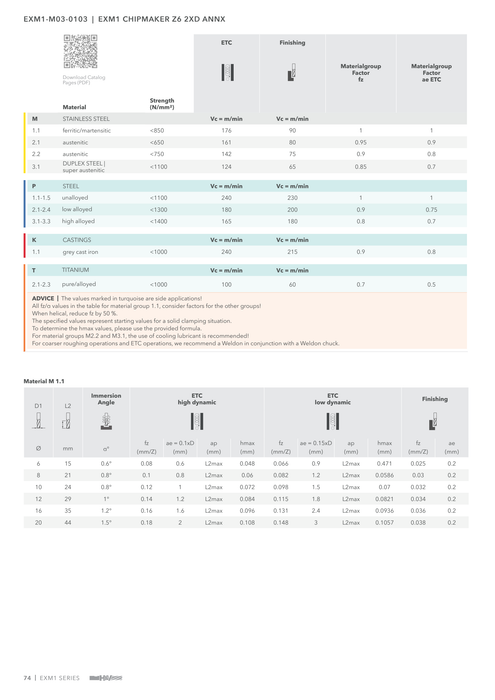

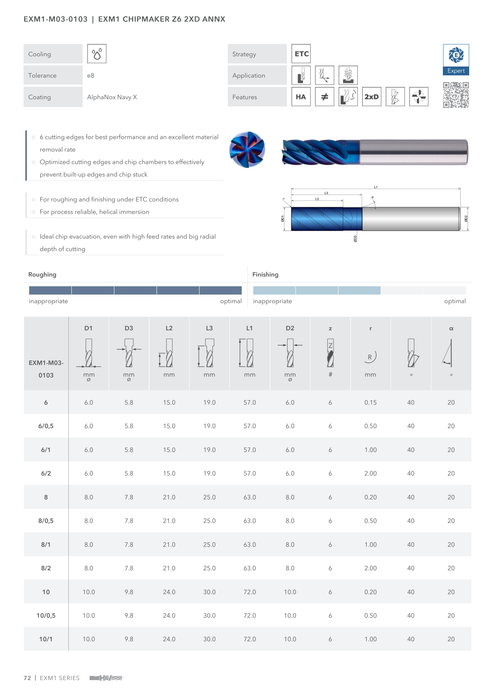

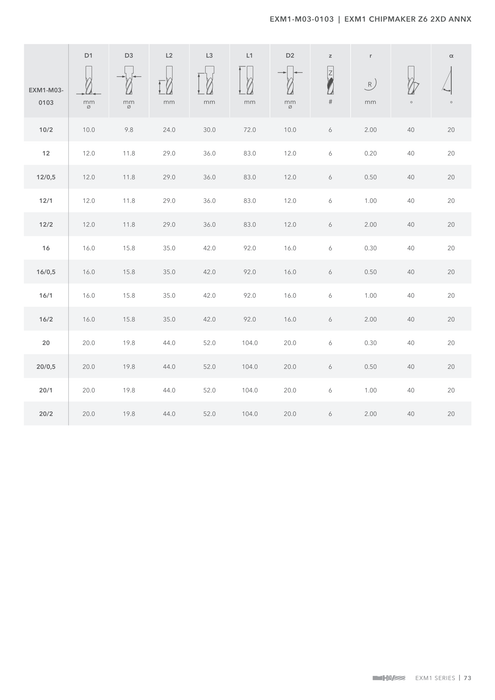

Material groups and primary/secondary applications follow the H&V catalog. Select cutting conditions for the specific material and operation; not every operation is supported for every material. Refer to the catalog pages in the gallery for dimensions and cutting data.
