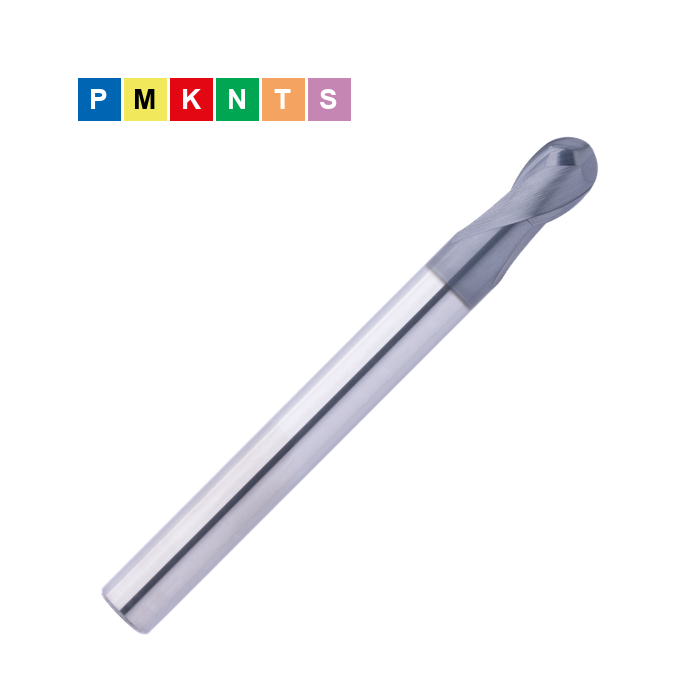

H&V BCU1-M08-0073 ROWMAKER Solid Carbide Ball-Nose End Mill 2FL 1xD overlong BUI

Sign in to view price and availability

Hofmann & Vratny BCU1 ROWMAKER ball-nose end mill.

Key features

  • Geometry of the face cutting edge designed for a soft and even cut
  • Adapted chip chambers for roughing and finishing
  • Suitable for wet and dry machining
  • Overlong version
  • Solid carbide
  • BetaUniIron (BUI) coating
  • 2FL cutting geometry
  • Shank form: HA
  • Manufacturer length designation: 1xD overlong (see variant dimensions and catalog for exact cutting length and reach)
  • Cutting diameter tolerance: f8

Recommended workpiece materials

PSteels

  • Unalloyed steels — tensile strength < 850 N/mm² — Primary application
  • Low-alloy steels — tensile strength < 950 N/mm² — Primary application
  • High-alloy steels — tensile strength < 1,100 N/mm² — Primary application

MStainless steels

  • Ferritic / martensitic stainless steels — tensile strength < 850 N/mm² — Primary application
  • Austenitic stainless steels — tensile strength < 650 N/mm² — Primary application

KCast iron

  • Grey cast iron — tensile strength < 1,000 N/mm² — Primary application

NNon-ferrous metals

  • Aluminium alloys and cast aluminium — tensile strength < 600 N/mm² — Primary application
  • Copper alloys — tensile strength < 600 N/mm² — Primary application

TTitanium

  • Pure titanium and titanium alloys — tensile strength < 1,000 N/mm² — Secondary application

SHeat-resistant superalloys

  • Heat-resistant superalloys — tensile strength < 1,450 N/mm² — Secondary application

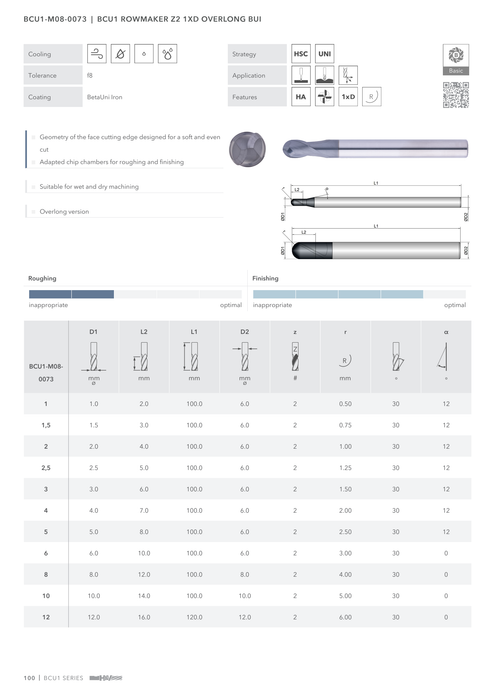

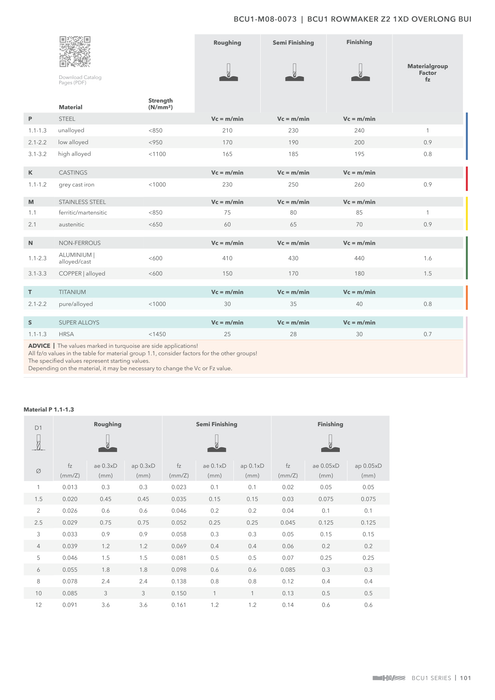

Material groups and primary/secondary applications follow the H&V catalog. Select cutting conditions for the specific material and operation; not every operation is supported for every material. Refer to the catalog pages in the gallery for dimensions and cutting data.
